Rhea Bulkhead

INTEGRATED SURFACE MOUNT LED LIGHT

OrbitX Direct Drive Technology onboard. No metal, no rust polycarbonate housing. Available in white and black. IP54 rated with Type A light quality.

Download Specs Back to Products
Rhea Bulkhead

Lifetime & Guarantee

  • Nominal Lifetime (L70): 60,000 hours (IES LM-80, TM-21)
  • Operational Guarantee (24/7): 6 years
  • Light Output Guarantee (24/7): 3 years

Photometric Data

  • Luminous Efficacy: 135 lm/W
  • CCT: 5000K (options available)
  • CRI: 83
  • GAI: 96
  • Light Quality: Type A compliant (LRC, New York)
  • Beam Angle: 160°
  • Stroboscopic Effect (50Hz): 80% flicker free (OHS/MHS compliant)

Electrical Data

  • Power: 15W
  • Power Factor: >0.98
  • Operating Voltage: 220-240V AC
  • Min Sustained Voltage: No minimum, operational from 150V
  • Max Sustained Voltage: 250V for 2 minutes
  • On/Off Switching: Unlimited
  • Delay to Full Brightness: Immediate

Temperature

  • Max Ambient Temperature (T Ambient): +30°C
  • Min Ambient Temperature (T Ambient): -40°C

Safety & Compliance

  • Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
  • Electrical Safety: IEC60598-1, IEC60598-2-5 compliant
  • Surge Protection: 1.5kV
  • Fire Rating: UL-94 V2 compliant
  • IP Rating: IP54

Interference Compliance

  • WiFi/Barcode/Radio: No interference
  • IEC 61547, SANS 215 (CISPR15) compliant
  • THD: IEC 61000-3-2 Class D Compliant

Additional Options

  • Battery Backup: 1000lm for 4h, 6h charge time, 1y guarantee
  • Variable Switching: 2 Live inputs, 1 Neutral
  • Radar Motion Sensor: Programmable sensitivity & time on

Dimensions

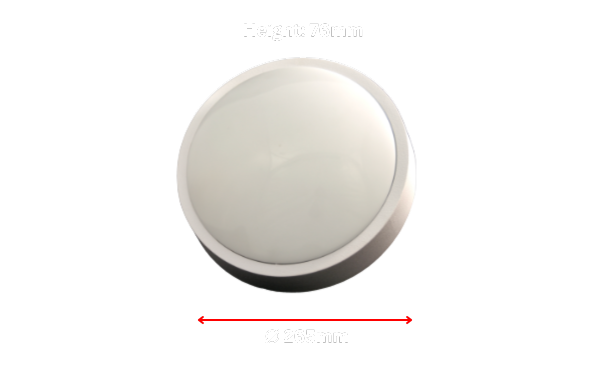

Rhea Bulkhead dimensions

Graphs

Light Survival Rate Curve

Time (×1000 h) vs Light Survival (%)

0102030405060708090100020406080100Time (1000 hours)Light Survival (%)

Lumen Maintenance Curve (L70)

Time (×1000 h) vs Lumen Output (%)

0102030405060708090100020406080100Time (1000 hours)Lumen Output (%)~60k hL70

Type A Lighting*

Colour Rendering Index (CRI) vs Gamut Area Index (GAI)

020406080100020406080100Colour Rendering Index (CRI)Gamut Area Index (GAI)OrbitXCRI 83, GAI 96Type A Lighting

*Type A Lighting as defined by the Lighting Research Centre, New York

Spectral Power Distribution (SPD)

Wavelength (nm) vs Relative Power

36048561073500.250.50.751Wavelength (nm)P (relative)

Configurations & Performance

Diameter (mm)Power (W)Luminous Flux (lm)
265152000

Model Codes & Packaging

Model CodeColorPower RatingUnits/BoxBox Dimensions (l × w × h mm)Weight (kg)IES Files
OXRH265155BBlack15 W1270 × 270 × 801.1Download IES
OXRH265155WWhite15 W1270 × 270 × 801.1Download IES
