Puck Seamless

INTEGRATED LINEAR LED LIGHT

OrbitX Direct Drive Technology onboard. Features thin end cap line (<3mm) for seamless look when mounted end-to-end. Available in 1200mm and 2400mm lengths with Type A light quality.

Download Specs Back to Products
Puck Seamless

Lifetime & Guarantee

  • Nominal Lifetime (L70): 60,000 hours (IES LM-80, TM-21)
  • Operational Guarantee (24/7): 6 years
  • Light Output Guarantee (24/7): 3 years

Photometric Data

  • Luminous Efficacy: 110 lm/W
  • CCT: 4000K/5000K (options available)
  • CRI: 83
  • GAI: 96
  • Light Quality: Type A compliant (LRC, New York)
  • Beam Angle: 160°
  • Stroboscopic Effect (100Hz): 80% flicker free

Electrical Data

  • Power: 58W (1200mm) / 116W (2400mm)
  • Power Factor: >0.98
  • Operating Voltage: 220-240V AC
  • Min Sustained Voltage: No minimum, operational from 150V
  • Max Sustained Voltage: 250V for 2 minutes
  • On/Off Switching: Unlimited
  • Delay to Full Brightness: Immediate

Temperature

  • Max Ambient Temperature (T Ambient): +30°C
  • Min Ambient Temperature (T Ambient): -40°C

Safety & Compliance

  • Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
  • Electrical Safety: IEC60598-1, IEC60598-2-5 compliant
  • Surge Protection: 1.5kV
  • Fire Rating: UL-94 V2 compliant

Interference Compliance

  • WiFi/Barcode/Radio: No interference
  • IEC 61547, SANS 215 (CISPR15) compliant
  • THD: IEC 61000-3-2 Class D Compliant

Design Features

  • Seamless Design: Thin end cap line (<3mm)
  • Mounting: End-to-end seamless installation
  • Dimensions: 36mm × 70mm profile
  • OHS and MHS Act regulations compliant

Dimensions

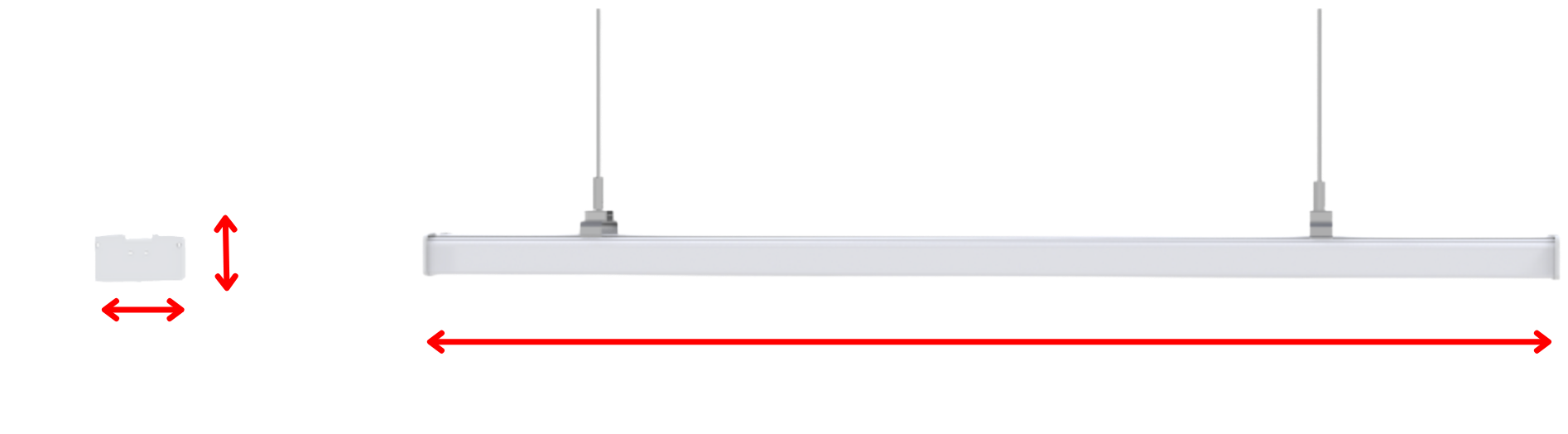

Puck Seamless dimensions

Graphs

Light Survival Rate Curve

Time (×1000 h) vs Light Survival (%)

0102030405060708090100020406080100Time (1000 hours)Light Survival (%)

Lumen Maintenance Curve (L70)

Time (×1000 h) vs Lumen Output (%)

0102030405060708090100020406080100Time (1000 hours)Lumen Output (%)~60k hL70

Type A Lighting*

Colour Rendering Index (CRI) vs Gamut Area Index (GAI)

020406080100020406080100Colour Rendering Index (CRI)Gamut Area Index (GAI)OrbitXCRI 83, GAI 96Type A Lighting

*Type A Lighting as defined by the Lighting Research Centre, New York

Spectral Power Distribution (SPD)

Wavelength (nm) vs Relative Power

36048561073500.250.50.751Wavelength (nm)P (relative)

Configurations & Performance

Length (mm)Power (W)Luminous Flux (lm)
1200586500
240011613000

Model Codes & Packaging

Product CodeLength (mm)CCTPower RatingUnits/BoxBox Dimensions (l × w × h mm)Weight (kg)IES Files
OXPU120058412004000K58W121280 × 185 × 1855.36Download IES
OXPU120058512005000K58W121280 × 185 × 1855.36Download IES
OXPU2400116424004000K116W122480 × 185 × 18510.72Download IES
OXPU2400116524005000K116W122480 × 185 × 18510.72Download IES
