Neptune Ex Rated
INTEGRATED IP68 LINEAR LED LIGHT
OrbitX Direct Drive Technology onboard. Explosion protected for hazardous areas. Zone 2: Ex ec IIC T5 Gc IP68. Zones 21 and 22: Ex tb IIIC T85 °C Db IP68.
Guarantee & Lifetime
- Operational Guarantee: 8 years (365d x 24h)
- Light Output Guarantee: 5 years (365d x 24h)
- Nominal Lifetime (L70): 70,000 hours
- Testing Standards: IES LM-80, TM-21
Photometric Data
- Luminous Efficacy: 135 lm/W
- Correlated Colour Temperature (CCT): 5000K (options available)
- Colour Rendering Index (CRI): 83
- Gamut Area Index (GAI): 96
- Light Quality: Type A compliant (Lighting Research Centre, New York)
- Beam Angle: 120°
- Stroboscopic Effect (100Hz): 80% flicker free (complies with OHS and MHS Act)
Electrical Data
- Power: See Configurations table
- Power Factor: >0.98
- Operating Voltage: 220-240V AC
- Minimum Sustained Voltage: No minimum limit, operational from 150V
- Maximum Sustained Voltage: 250V for 2 minutes
- On/Off Switching: Unlimited
- Explosion protection: Ex ec IIC T5 Gc IP68 & Ex tb IIIC T85 °C Db IP68
Temperature
- Max Ambient Temperature (T Ambient): +35°C
- Min Ambient Temperature (T Ambient): -40°C
Safety & Compliance
- Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
- Electrical Standards: IEC60598-1, IEC60598-2-5 compliant
- Surge Protection: 1.5kV
- Fire Rating: UL-94 V0 compliant (no flaming droplets)
- IP Rating: IP68
- SABS: Safety tests passed
Interference Compliance
- WiFi, Barcode Scanner, Radio Frequency: No interference
- Standards: IEC 61547, SANS 215 (CISPR15) compliant
- Total Harmonic Distortion: IEC 61000-3-2 Class D Compliant
Additional Options
- Optional Battery Backup: Output 1000 lm for 4h; 6h charge; 1y guarantee
- Optional Variable Switching: 2 Live inputs, 1 Neutral (e.g., 80W split into 32/48/80W)
- Optional Radar Motion Sensor: Programmable sensitivity and time on

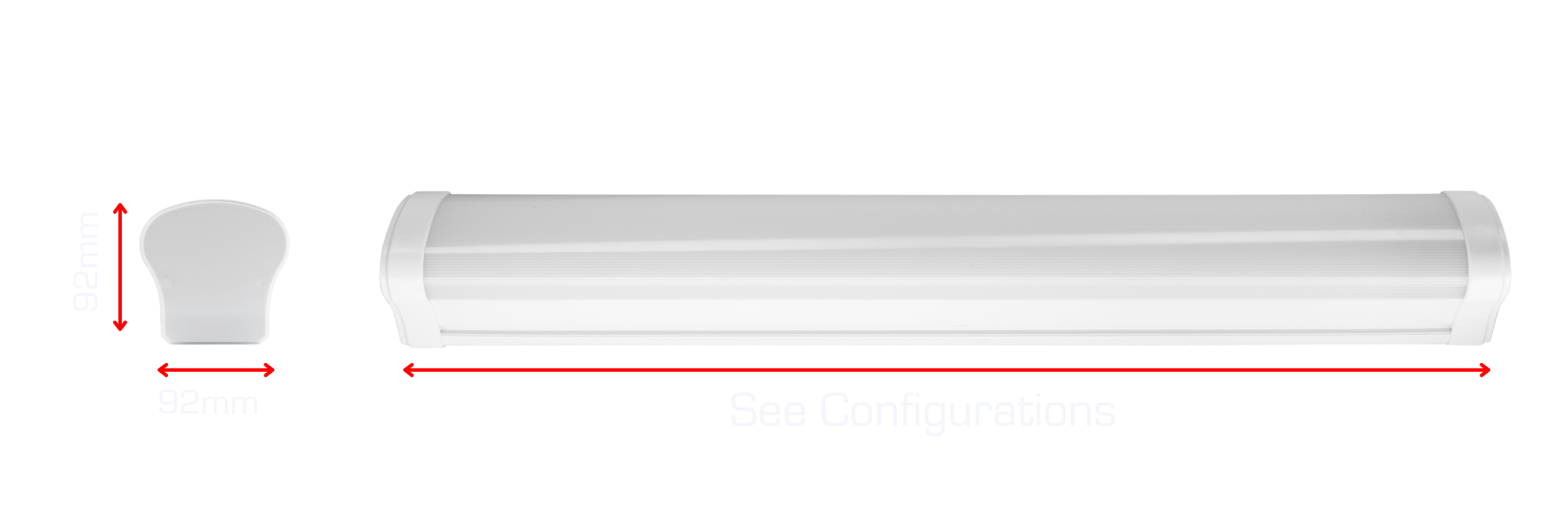

Dimensions
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Lumen Maintenance Curve (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
Configurations & Performance
| Length | Power (W) | Luminous Flux (lm) |
|---|---|---|
| 600 mm | 9 | 1000 |
| 18 | 2000 | |
| 27 | 3000 | |
| 36 | 4000 | |
| 45 | 5000 | |
| 1200 mm | 16 | 7500* |
| 20 | 2500 | |
| 32 | 4000 | |
| 40 | 5000 | |
| 48 | 6000 | |
| 60 | 7500 | |
| 80 | 10000 |
* Note: The 16W 1200mm model's lumen output appears inconsistent in the source document. Please verify with manufacturer.
Model Codes & Packaging
| Model Code | Length (mm) | Power Rating | Units/Box | Box Dimensions (l × w × h mm) | Weight (kg) | IES Files |
|---|---|---|---|---|---|---|
| OXNT0600095 | 600 | 9 W | 8 | 1280 × 185 × 185 | 6.92 | — |
| OXNT0600185 | 600 | 18 W | 8 | 1280 × 185 × 185 | 7.08 | — |
| OXNT0600275 | 600 | 27 W | 8 | 1280 × 185 × 185 | 7.23 | — |
| OXNT0600365 | 600 | 36 W | 8 | 1280 × 185 × 185 | 7.38 | — |
| OXNT0600455 | 600 | 45 W | 8 | 1280 × 185 × 185 | 7.53 | — |
| OXNT1200165 | 1200 | 16 W | 4 | 1280 × 185 × 185 | 6.56 | Download IES |
| OXNT1200205 | 1200 | 20 W | 4 | 1280 × 185 × 185 | 6.56 | — |
| OXNT1200325 | 1200 | 32 W | 4 | 1280 × 185 × 185 | 6.71 | Download IES |
| OXNT1200405 | 1200 | 40 W | 4 | 1280 × 185 × 185 | 6.71 | — |
| OXNT1200485 | 1200 | 48 W | 4 | 1280 × 185 × 185 | 6.86 | Download IES |
| OXNT1200605 | 1200 | 60 W | 4 | 1280 × 185 × 185 | 6.86 | — |
| OXNT1200805 | 1200 | 80 W | 4 | 1280 × 185 × 185 | 7.04 | — |
Specification tolerance: ±10%
