Neptune

INTEGRATED IP65 LINEAR LED LIGHT

Weather-resistant integrated LED lighting built on OrbitX Direct Drive technology. Dust, moisture and vapour proof for demanding environments.

Download Specs Back to Products
Neptune

Guarantee & Lifetime

  • Operational Guarantee: 8 years (365d x 24h)
  • Light Output Guarantee: 5 years (365d x 24h)
  • Nominal Lifetime (L70): 70,000 hours
  • Testing Standards: IES LM-80, TM-21

Photometric Data

  • Luminous Efficacy: 135 lm/W
  • Correlated Colour Temperature (CCT): 5000K (options available)
  • Colour Rendering Index (CRI): 83
  • Gamut Area Index (GAI): 96
  • Light Quality: Type A compliant (Lighting Research Centre, New York)
  • Beam Angle: 120°
  • Stroboscopic Effect (100Hz): 80% flicker free (complies with OHS and MHS Act)

Electrical Data

  • Power: See Configurations table
  • Power Factor: >0.98
  • Operating Voltage: 220-240V AC
  • Minimum Sustained Voltage: No minimum limit, operational from 150V
  • Maximum Sustained Voltage: 250V for 2 minutes
  • On/Off Switching: Unlimited
  • Delay to Full Brightness: Immediate

Temperature

  • Max Ambient Temperature (T Ambient): +35°C
  • Min Ambient Temperature (T Ambient): -40°C

Safety & Compliance

  • Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
  • Electrical Standards: IEC60598-1, IEC60598-2-5 compliant
  • Surge Protection: 1.5kV
  • Fire Rating: UL-94 VO compliant (no flaming droplets)
  • IP Rating: IP65
  • SABS: Safety tests passed

Interference Compliance

  • WiFi, Barcode Scanner, Radio Frequency: No interference
  • Standards: IEC 61547, SANS 215 (CISPR15) compliant
  • Total Harmonic Distortion: IEC 61000-3-2 Class C Compliant

Additional Options

  • Optional Battery Backup: Output 1000 lm for 4h; 6h charge; 1y guarantee
  • Optional Variable Switching: 2 Live inputs, 1 Neutral (e.g., 80W split into 32/48/80W)
  • Optional Radar Motion Sensor: Programmable sensitivity and time on

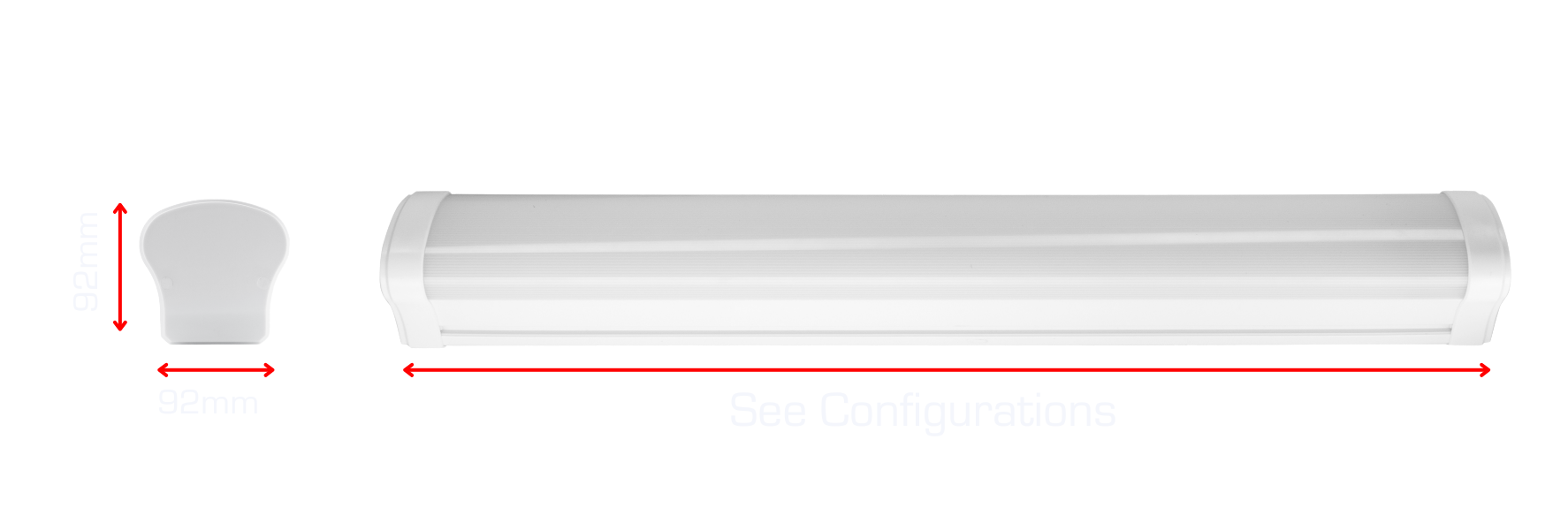

Dimensions

Neptune dimensions

Graphs

Light Survival Rate Curve

Time (×1000 h) vs Light Survival (%)

020406080100020406080100Time (1000 hours)Light Survival (%)

Lumen Maintenance Curve (L70)

Time (×1000 h) vs Lumen Output (%)

01020304050607080020406080100Time (1000 hours)Lumen Output (%)L70

Type A Lighting*

Colour Rendering Index (CRI) vs Gamut Area Index (GAI)

020406080100020406080100Colour Rendering Index (CRI)Gamut Area Index (GAI)OrbitXCRI 83, GAI 96Type A Lighting

*Type A Lighting as defined by the Lighting Research Centre, New York

Spectral Power Distribution (SPD)

Wavelength (nm) vs Relative Power

36048561073500.250.50.751Wavelength (nm)P (relative)

Configurations & Performance

LengthPower (W)Luminous Flux (lm)
600 mm91000
182000
273000
364000
455000
1200 mm162000
324000
486000
648000
8010000
1200 mm*9612000
11215000
12817000
1500 mm192200
384400
576600
768800
2400 mm324000
648000
9612000

* Indicates the Neptune Supersize housing.

Model Codes & Packaging

Model CodeLength (mm)Power RatingUnits/BoxBox Dimensions (l × w × h mm)Weight (kg)IES Files
OXNT06000956009 W81280 × 185 × 1856.92Download IES
OXNT060018560018 W81280 × 185 × 1857.08Download IES
OXNT060027560027 W81280 × 185 × 1857.23Download IES
OXNT060036560036 W81280 × 185 × 1857.38Download IES
OXNT060045560045 W81280 × 185 × 1857.53Download IES
OXNT1200165120016 W41280 × 185 × 1856.56Download IES
OXNT1200325120032 W41280 × 185 × 1856.71Download IES
OXNT1200485120048 W41280 × 185 × 1856.86Download IES
OXNT1200645120064 W41280 × 185 × 1857.04—
OXNT1200805120080 W41280 × 185 × 1857.64Download IES
OXNT1200965120096 W41280 × 185 × 1858.08—
OXNT120011251200112 W41280 × 185 × 1858.23—
OXNT120012851200128 W41280 × 185 × 1858.38—
OXNT1500195150019 W41850 × 185 × 1858.19—
OXNT1500385150038 W41850 × 185 × 1858.37—
OXNT1500575150057 W41850 × 185 × 1858.55—
OXNT1500765150076 W41850 × 185 × 1858.78—
OXNT2400325240032 W42480 × 185 × 18513.12—
OXNT2400645240064 W42480 × 185 × 18513.42—
OXNT2400965240096 W42480 × 185 × 18513.72—

Specification tolerance: ±10%
